                     High Pressure Jetting Hose


      (Click picture for larger view)

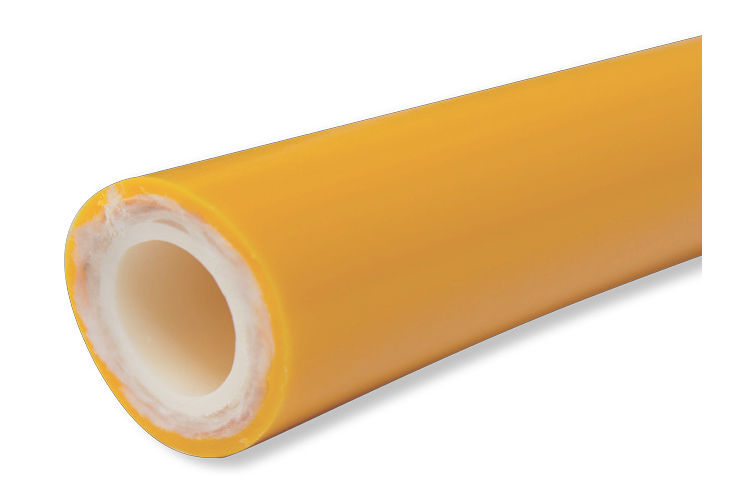

CONTRUCTION :
Core: Thermoplastic Elastomer.
Reinforcement: 2 braids of Synthetic fibre.
Cover: Yellow coloured polyurethane.
Coil Sizes: Refer to price list for details.
Temperature Range:
Continuous: -40°C to +60°C.

POLYHOSE YELLOW 5000 PSI W.P. SEWER JETTING HOSE
APPLICATION :

Standard Sewer jetting hose for water basting applications. Light weight, resistant to microbiological degradation and typically used by domestic plumbers. YELLOW colour indicates 5000 psi working pressure with 2.5 to 1 safety factor. Higher pressure hoses are available on request using Aramid fibre. Available as 60m assemblies with BSP male ends or in bulk reels. (Fittings also available.)

  HOSE HOSE  Working Min. Burst Weight  Min.  Bend
  PRODUCT CODE  I.D. (Nom.) O.D. (Nom.)  Pressure  Pressure Per Metre Radius
    (in) (mm) (in) (mm) (psi) (bar) (psi) (bar) (kg) (mm)
110-G6-302-03-001 3/16 4.76 0.413 10.49 5000 345 12500 862 0.085 45
110-G6-302-04-001 1/4 6.35 0.505 12.83 5000 345 12500 862 0.113 55
110-G6-302-06-001  3/8 9.53 0.69 17.53 5000 345 1250 862 0.197 75



      (Click picture for larger view)

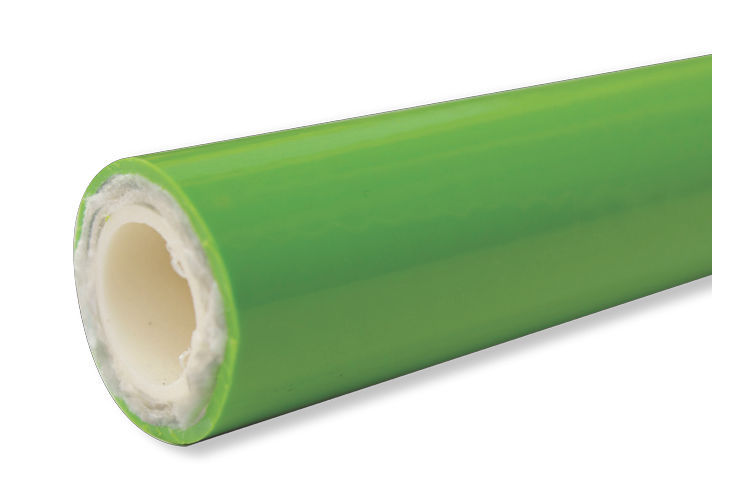

CONTRUCTION :
Core: Thermoplastic Elastomer.
Reinforcement: 2 braids of Synthetic fibre.
Cover: Green coloured polyurethane.
Coil Sizes: 120m c/w swaged 1/2 male end fittings or 240m hose only on reel. Refer to price list for details.
Temperature Range:
Continuous: -40°C to +60°C.




POLYHOSE GREEN 4000 PSI W.P. SEWER JETTING HOSE
APPLICATION :

Standard Sewer jetting hose for water basting applications. Light weight, resistant to microbiological degradation and typically used with lateral sewer line cleaning equipment. GREEN colour indicates 4000 psi working pressure with 2.5 to 1 safety factor. Higher pressure or smaller O.D. hoses are available on request using Aramid fibre. Available as assemblies with BSP male ends or in bulk reels. (Fittings also available.)

  HOSE HOSE  Working Min. Burst Weight  Min.  Bend
  PRODUCT CODE  I.D. (Nom.) O.D. (Nom.)  Pressure  Pressure Per Metre Radius
    (in) (mm) (in) (mm) (psi) (bar) (psi) (bar) (kg) (mm)
  110-G6-303-08 1/2 12.7 0.880 22.30 4000 276 10000 690 0.287 95





      (Click picture for larger view)

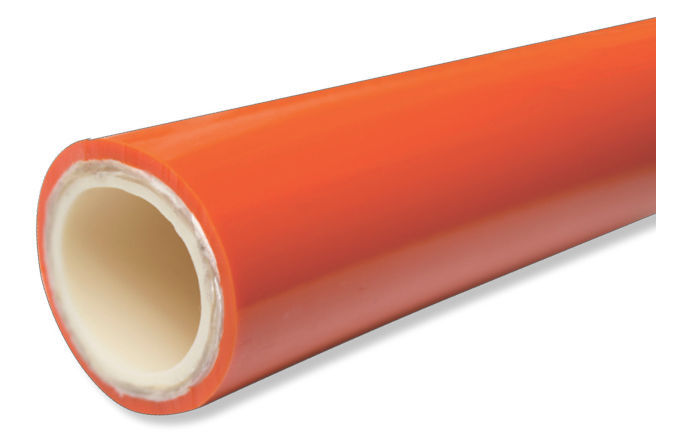

CONTRUCTION :
Core: Thermoplastic Elastomer.
Reinforcement: 2 braids of Synthetic fibre plus one extra special braid.
Cover: Orange coloured polyurethane.
Coil Sizes: 122m (400ft) & 183m (600ft). Refer to price list for details.
Temperature Range:
Continuous: -40°C to +60°C.

POLYHOSE ORANGE 2500 PSI W.P. SEWER JETTING HOSE
APPLICATION :

Standard Sewer jetting hose for cleaning vehicles and equipment. Resistant to microbiological degradation and typically used with Sewer jetting trucks. ORANGE colour indicates 2500 psi working pressure with 2.5 to 1 safety factor. Bonded tube and cover and available as assemblies of various lengths. Swaged fittings are NPT male and NPSM swivel female at each end.
  HOSE   HOSE    Working   Min. Burst   Weight  Min.  Bend
  PRODUCT CODE  I.D. (Nom.)   O.D. (Nom.)    Pressure    Pressure   Per Metre Radius
  (in) (mm) (in) (mm) (psi) (bar) (psi) (bar) (kg) (mm)
110-G6-301-12 3/4 19 1.15 29.2 2500 175 6250 438 0.451 125
110-G6-301-16 1 25.4 1.450 36.8 2500 175 6250 438 0.640 160





      (Click picture for larger view)

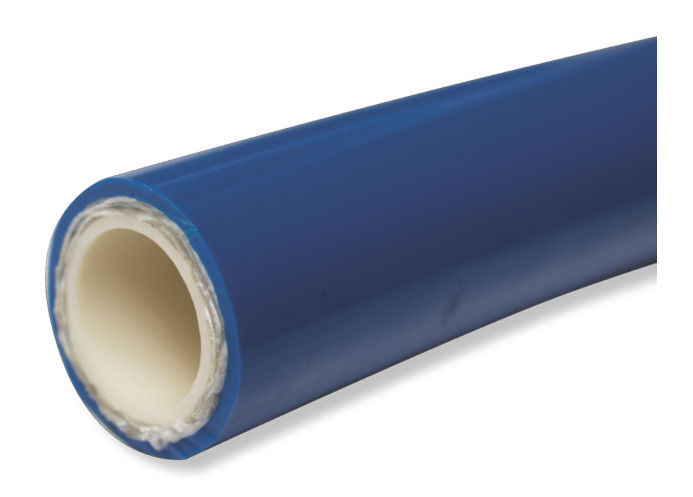

CONTRUCTION :
Core: Thermoplastic Elastomer.
Reinforcement: 2 braids of Synthetic fibre plus one extra special braid.
Cover: Royal Blue coloured polyurethane.
Coil Sizes: 122m (400ft) & 183m (600ft). Refer to price list for details.
Temperature Range:
Continuous: -40°C to +60°C.

POLYHOSE BLUE 3000 PSI W.P. SEWER JETTING HOSE
APPLICATION :

Standard Sewer jetting hose for cleaning vehicles and equipment. Resistant to microbiological degradation and typically used with Sewer jetting trucks. BLUE colour indicates 3000 psi working pressure with 2.5 to 1 safety factor. Bonded tube and cover and available as assemblies of various lengths. Swaged fittings are NPT male and NPSM swivel female at each end.

  HOSE HOSE  Working Min. Burst Weight  Min.  Bend
  PRODUCT CODE  I.D. (Nom.) O.D. (Nom.)  Pressure  Pressure Per Metre Radius
(in) (mm) (in) (mm) (psi) (bar) (psi) (bar) (kg) (mm)
110-G6-302-12 3/4 19 1.25 31.8 3000 207 7500 517 0.447 125
110-G6-302-16 1 25.4 1.525 38.7 3000 207 7500 517 0.690 160
110-G6-302-20 1 1/4 31.8 1.84 46.7 3000 207 7500 517 1.054 250

      (Click picture for larger view)

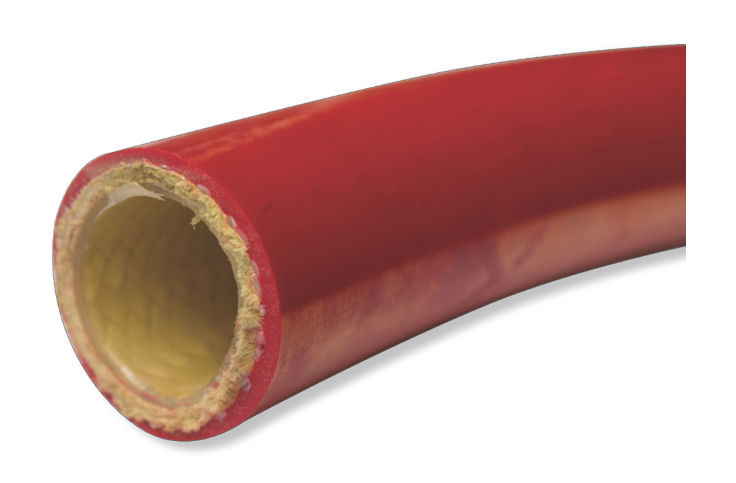

CONTRUCTION :
Core: Special Polyether Polyurethane.
Reinforcement: 1 or 2 braids of Aramid fibre braid depending upon hose I.D.
Cover: Red coloured polyurethane.
Coil Sizes: 183m (600ft) with other lengths upon request. Refer to price list for details.
Temperature Range:
Continuous: -40°C to +60°C.

POLYHOSE RED “EXTRA FLEXIBLE” 3625 PSI W.P. SEWER JETTING HOSE

APPLICATION :

A NEW premium flexible Sewer jetting hose for cleaning vehicles and equipment. Resistant to microbiological degradation and typically used with Sewer jetting trucks. RED colour indicates 3625 psi working pressure with 2.5 to 1 safety factor. Bonded tube and cover and available as assemblies. (Note special ratings for 1/2”size only.) Swaged fittings are NPT male and NPSM swivel female at each end.

  HOSE HOSE  Working Min. Burst Weight  Min.  Bend
  PRODUCT CODE  I.D. (Nom.) O.D. (Nom.)  Pressure  Pressure Per Metre Radius
(in) (mm) (in) (mm) (psi) (bar) (psi) (bar) (kg) (mm)
110-G6-308-08 1/2 12.7 0.81 20.6 4000 275 16000 1100 0.259 80
110-G6-308-12 3/4 19.1 1.15 29.2 3625 250 9062 625 0.434 125
110-G6-308-16 1 25.4 1.44 36.6 3625 250 9062 625 0.645 150
110-G6-308-20 1 1/4 31.5 1.800 45.7 3625 250 9062 625 0.905 250




      (Click picture for larger view)

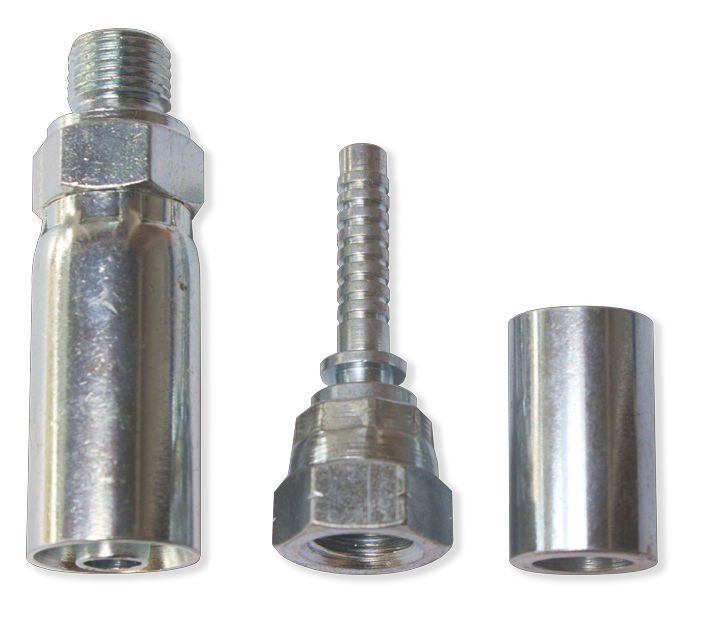

POLYFIT SWAGE END FITTINGS FOR SEWER JET HOSE

APPLICATION :

Plated steel crimp fittings for the Polyhose range of Sewer Jetting hose. Stainless steel versions available upon request. Male BSP to 1/2” size supplied in a one piece configuration.

PRODUCT RANGE FITTING DESCRIPTION HOSE THREAD THREAD THREAD CRIMPING RANGE
I.D. SIZE TYPE
END (MIN-MAX)
110-G34-0304BSP ONE PIECE S/JET FITTING 3/16 X 1/4 BSPM 3/16 1/4 BSP FIXED MALE 10.00mm-10.40mm

110-G34-0404BSP ONE PIECE S/JET FITTING 1/4 X 1/4 BSPM 1/4 1/4 BSP FIXED MALE 14.50mm-15.00mm

110-G34-0604BSP ONE PIECE S/JET FITTING 3/8 X 1/4 BSPM 3/8 1/4 BSP FIXED MALE 18.00mm-18.40mm

110-G34-0606BSP ONE PIECE S/JET FITTING 3/8 X 3/8 BSPM 3/8 3/8 BSP FIXED MALE 18.00mm-18.40mm

110-G34-0808BSP ONE PIECE S/JET FITTING 1/2 X 1/2 BSPM 1/2 1/2 BSP FIXED MALE 22.60mm-23.00mm

110-G34-0404BSPF 1/4 X 1/4 BSP  FEMALE SWIVEL SEWER  JET FIT'G 1/4 1/4 BSPF SWIVEL FEMALE 14.50mm-15.00mm

110-G34-0606BSPF 3/8 X 3/8 BSP  FEMALE SWIVEL SEWER  JET FIT'G 3/8 3/8 BSPF SWIVEL FEMALE 18.00mm-18.40mm

110-G34-0404NPSM 1/4 X 1/4 NPSM  FEMALE SWIVEL SEWER  JET FIT'G 1/4 1/4 NPSM SWIVEL FEMALE 14.50mm-15.00mm

110-G34-1212BSPF 3/4 BSP  FEMALE SEWER  JET FITTING 3/4 3/4 BSPF SWIVEL FEMALE 30.80mm-31.40mm

110-G34-1212BSPM 3/4 BSP  MALE SEWER  JET FITTING 3/4 3/4 BSP FIXED MALE 30.80mm-31.40mm

110-G34-1212NPSM 3/4 NPSM  FEMALE SEWER  JET FITTING 3/4 3/4 NPSM SWIVEL FEMALE 30.80mm-31.40mm

110-G34-1212NPT 3/4 NPT MALE SEWER  JET FITTING 3/4 3/4 NPT FIXED MALE 30.80mm-31.40mm

110-G34-1616BSPF 1” BSP  FEMALE SEWER  JET FITTING 1 1 BSPF SWIVEL FEMALE 39.80mm-40.40mm

110-G34-1616BSPM 1” BSP  MALE SEWER  JET FITTING 1 1 BSP FIXED MALE 39.80mm-40.40mm

110-G34-1616NPSM 1” NPSM  FEMALE SEWER  JET FITTING 1 1 NPSM SWIVEL FEMALE 39.80mm-40.40mm

110-G34-1616NPT 1”NPT  MALE SEWER  JET FITTING 1 1 NPT FIXED MALE 39.80mm-40.40mm

110-G34-2020BSPF 1 1/4” BSP  FEMALE SEWER  JET FITTING 1 1/4 1 1/4 BSPF SWIVEL FEMALE 49.80mm-50.40mm

110-G34-2020BSPM 1 1/4” BSP  MALE SEWER  JET FITTING 1 1/4 1 1/4 BSP FIXED MALE 49.80mm-50.40mm

110-G34-2020NPSM 1 1/4” NPSM  FEMALE SEWER  JET FITTING 1 1/4 1 1/4 NPSM SWIVEL FEMALE 49.80mm-50.40mm

110-G34-2020NPT 1 1/4”NPT MALE SEWER  JET FITTING 1 1/4 1 1/4 NPT FIXED MALE 49.80mm-50.40mm
