                     Blocking Plugs









      (Click picture for larger view)

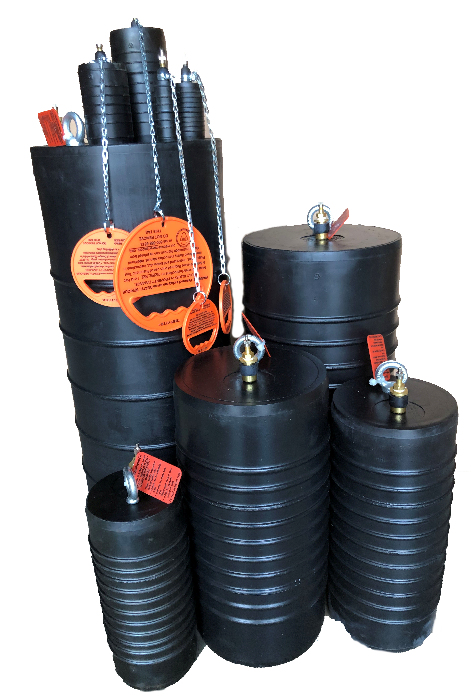

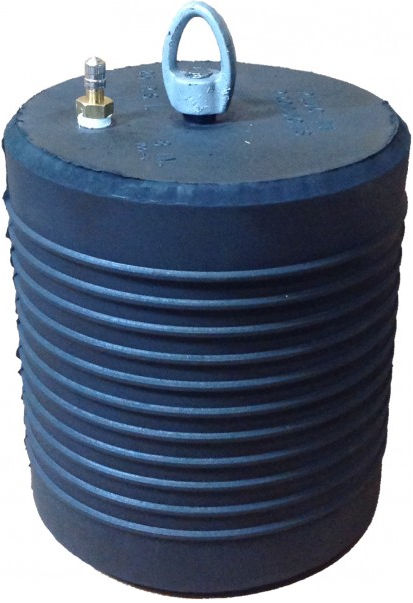

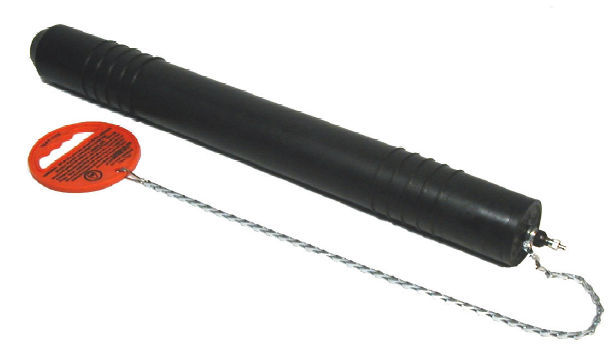

 Multi Size Blocking Plugs


Product Code Size Range mm Inflation PSI/Bar Back pressure PSI/Bar Length Width Weight
115-83620 19-32 45 17 60 17 0.025
114-070 70-150 22/1.5 13/.9 320 65 0.9
123-100-0406 100-150 30/2.1 10/14.5 240 90 0.9
123-600-0406 100-150 35/2.4 10/14.5 330 90 1.1
115-83646 100-150 30 13 620 120 1
114-100L 100-200 44/3 29/2.0-19/1.3 520 100 0.4
123-600-0610 150-250 35/2.4 14.5/1.0 560 125 1
123-600-0612 150-300 35/2.4 14.5/1.0 600 125 6.5
114-150 150-300 44/3 29/2.0 600 130 3
123-600-0812 200-300 35/2.4 14.5/1.0 575 180 4.5
123-600-1016 225-400 35/2.4 14.5/1.0 635 225 7.3
123-600-1218 275-450 354/2.4 14.5/1.0 710 270 9.7
114-300 300-600 44/3 29/2-13/0.9 700 290 20
123-600-1224 300-600 25/1.7 13/.09-10/0.7 1195 270 13.6
123-600-1521 350-550 35/2.4 14.5/1-10/0.7 800 330 13.6
123-600-1824 400-625 35/2.4 15/1.0-10/0.7 900 395 17.5
114-400 400-800 35/2.4 28/1.9-13/.09 1300 340 15
123-600-1830 425-775 25/1.7 14.5/1-10/.7 1200 410 38
123-600-2036 475-950 25/1.7 14.5/1-10/.7 1650 460 43
114-500-1000 500-1000 44/3 29/2-13/0.9 1400 400 18
114-500-1000 500-1200 44/3 28/1.9-12-0.8 1700 460 25
114-500-1400 500-1400 25/1.7 22/1.5 2300 490 95
123-600-2448 575-1250 25/1.7 14.5/1-10/.7 2300 550 65.7
114-700 700-1600 25/1.7 14.5/1 2700 580 180
114-800 800-2000 25/1.7 14.5/1 3500 780 235
123-600-3660 900-1550 20/1.4 14.5/1-10/0.7 2300 865 106.5
123-600-4278 1050-2000 14.5/1.0 6/.4 2600 1016 136
114-1200 1200-2400 14.5/1.0 14.5/1 3500 780 235
123-600-4872 1200-1850 20/1.4 13/0.9-8/0.6 2300 1170 147
123-600-6096 1500-2450 12/0.8 6/0.4 2800 1480 250









      (Click picture for larger view)

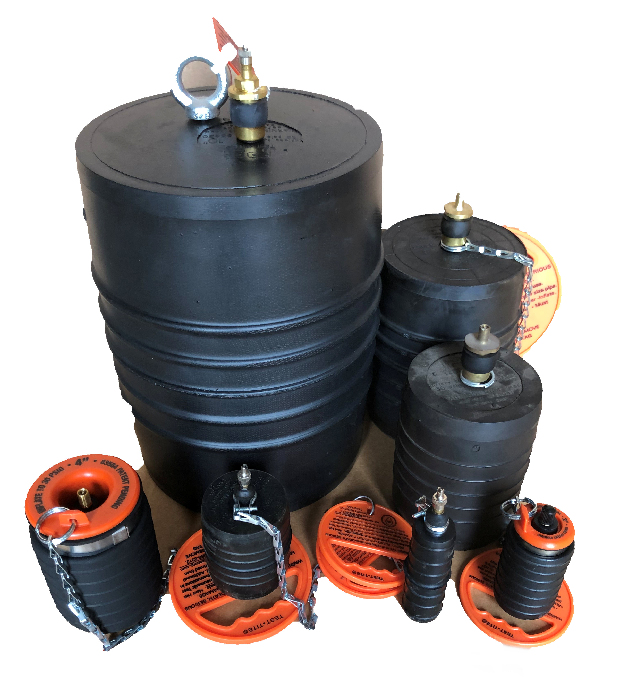

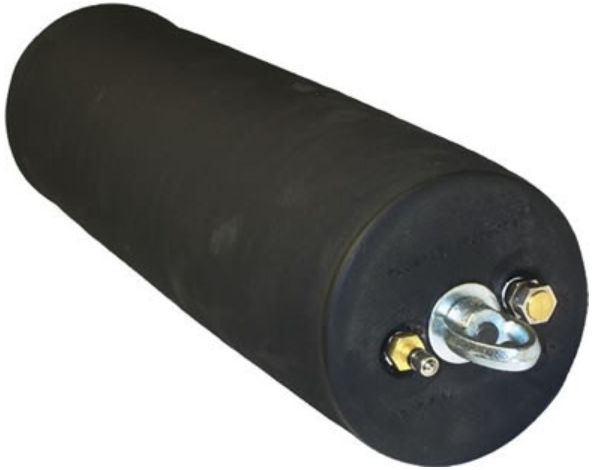

 Singe Size Blocking Plugs


Product Code Size Range mm Inflation PSI/Bar Back pressure PSI/Bar Length Width Weight
115-83621 38 40 13 40 40 0.05
115-83642 52 30 13 620 38 0.4
115-83623 76 35 13 80 60 0.08
115-83624 76 30 13 620 50 0.6
115-86344 100 30 13 620 60 1
115-83624 100 30 13 110 75 0.7
123-100-04 100 25 10/.7 140 90 0.7
115-83625 125 30 13 140 100 0.7
123-100-06 150 25 10/.7 150 125 1.4
123-100-09 225 20 10/.7 255 200 3.6
123-100-12 300 20 10/.7 305 275 5.6
123-100-15 375 25 10/.7 380 350 10.9
123-100-18 450 25 10/.7 460 425 15.5
123-100-21 525 20 8/.55 535 475 19
