                     Bypass Plugs









      (Click picture for larger view)

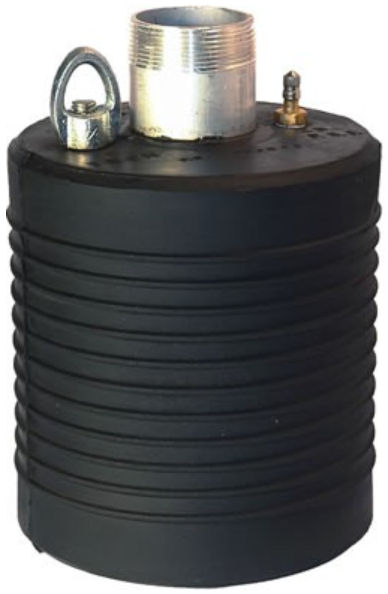

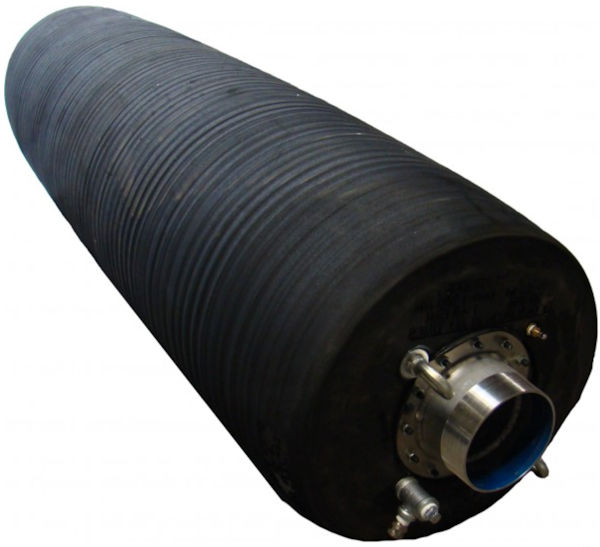

 Multi Size Bypass Plugs

Product Code Size Range mm Inflation PSI/Bar Back pressure PSI/Bar By pass Length Width Weight
123-400-0408-2 100-200 40/2.8 14.5/1 50 559 98 3
123-400-0610-2 150-250 40/2.8 14.5/1-10/0.7 50 560 140 3
123-400-0610-3 150-250 40/2.8 14.5/1 75 560 140 6
123-400-0812-2 200-300 40/2.8 14.5/1 50 560 165 8
123-400-0812-4 200-300 40/2.8 14.5/1 25 560 165 8
114-BP-200 200-400 44/3.0 14.5/1-10/0.7 50 430 195 10
123-400-1015-2 250-400 40/2.8 14.5/1 50 600 216 13
123-400-1016-6 225-400 40/2.8 14.5/1 150 560 216 12
123-400-1218-2 275-400 40/2.8 14.5/1 50 560 255 15.5
123-400-1218-6 275-450 40/2.8 14.5/1 150 560 255 15.5
114-BP300 300-600 44/3.0 19/1.3-9/0.6 75 520 290 23
123-400-1521-2 350-550 40/2.8 14.8/1-10/0.7 50 610 345 21
123-400-1521-6 350-550 40/2.8 14.8/1-10/0.7 150 610 345 21
123-400-1824-2 425-625 40/2.8 14.5/1-10/0.7 50 620 405 27
123-400-1824-6 425-625 40/2.8 14.5/1-10/0.7 150 620 405 27
123-400-1824-F 425-625 40/2.8 14.5/1-10/0.7 100-150 1040 405 43
114-BP500-1000 500-1000 44/3.0 19/1.3-9/0.6 50+100 1010 490 90
114-BP500-1200 500-1200 29/2.0 19/1.3-7/0.5 50+100 1300 490 120
114-BP500-1400 500-1400 22/1.5 19/1.3-7/0.5 100 2300 460 95
123-675-2448-6 575-1250 20/1.4 14.5/1-10/.7 150 2286 546 80
123-3660-6 850-1550 20/1.4 14.5/1-10/.7 150 2550 690 110
123-400-2436-F 550-950 40/2.8 14.5/1-10/0.7 100-200 1040 545 59
114-BP700 700-1600 14.5/1 19/1.3-7/0.5 100 2700 580 180
114 BP-800 800-2000 14.5/1 19/1.3-7/0.5 100 3500 780 235
123-3648-F 850-1250 40/2.8 10/0.7-5/0.3 100-300 1040 838 98
123-400-4860-F 1150-1550 40/2.8 8/.06-5/.03 100-600 1040 1145 148
114-BP1200 1200-2400 14.5/1 19/1.3-7/0.5 150 4300 1000 170








      (Click picture for larger view)

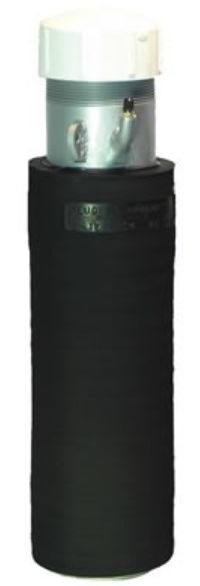

 Single Size Bypass Plugs

Product Code Size Range mm Inflation PSI/Bar   By pass Length Width
123 200-04 100 25/1.7   25 203 90
123250-04 100 25/1.7   50 305 76
123 200-06 150 25/1.7   25 203 125
123 250-06 150 25/1.7   100 305 127
123 200-09 225 20/1.4   75 33 200
123 250 09 225 25/1.7   150 255 220
123 200-12 300 20/1.4   100 381 350
123 250-12 300 25/1.7   200 432 254
123 250-15 375 25/1.7   100 483 425
123 250-375 375 25/1.7   305 457 343
123 200-18 450 25/1.7   100 533 475
123 250-18 450 25/1.7   356 457 406
123 200-21 525 20/1.4   100 610 495
123 21-18 525 25/1.7   457 457 572
123-250-24 600 25/1.7   508 457 572
123 250-27 675 25/1.7   610 457 648
123 250-30 750 25/1.7   610 457 724








      (Click picture for larger view)

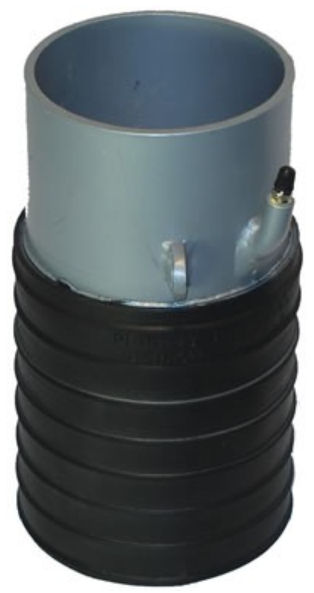

 High Flow No Flow Plugs


Product Code Size Range mm Inflation PSI/Bar Inflation PSI/Bar By pass Length Diameter
123-280-6 150 10/.7 25/1.7 75 305 127
123-280-9 225 10/.7 25/1.7 125 305 200
123-280-12 300 10/.7 25/1.7 229 457 254
123-280-15 375 10/.7 25/1.7 280 457 343
123-280-18 450 10/.7 25/1.7 350 595 395
123-280-21 525 10/.7 25/1.7 425 595 450
123-280-24 600 10/.7 25/1.7 525 655 680
