Multi-Flex™ Heavy Duty Plugs Without By-Pass










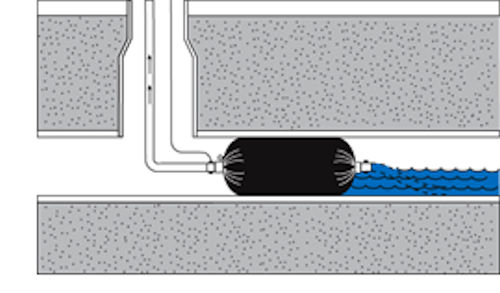

      (Click picture for larger view)







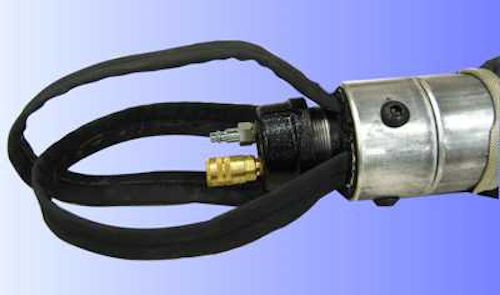

Multi-Flex™ Heavy Duty Plugs Sizes: 50mm to 1829mm Without By-Pass


  Pipe Diameter Max. Inflation Pipeline Deflated Shipping
Product Code Max mm Min mm psig bar Max. Head  m Length   mm Weight  Kg
108 124-002 50 45 80 5.5 28 317 2
108 124-003 76 51 80 5.5 28 356 2.5
108 124-004 102 64 80 5.5 28 431 3
108 124-006 152 77 80 5.5 28 558 3.6
108 124-008 203 115 70 4.8 24.6 635 8
108 124-010 254 127 70 4.8 24.6 939 9.5
108 124-012 305 140 70 4.8 24.6 1066 11
108 124-015 381 153 42 2.9 14.6 1295 11
108 124-016 406 153 37 2.5 13 1371 11.5
108 124-018 457 166 37 2.5 13 1498 11
108 124-020 508 178 32 2.2 11.2 1651 14
108 124-024 610 178 30 2 10.5 1955 21
108 124-030 762 204 25 1.7 8.8 2413 32
108 124-033 838 229 25 1.7 8.8 2667 36
108 124-036 914 242 20 1.4 7 2971 39
108 124-042 1067 242 18 1.2 6.3 3378 62
108 124-048 1219 254 15 1 5.2 3784 78
108 124-054 1372 305 11 0.7 3.8 4546 86
108 124-060 1524 331 8 0.5 2.8 4851 95
108 124-066 1676 331 7.5 0.5 2.6 5283 97
108 124-072 1829 381 7 0.4 2.4 5715 99

**Inflatable Plug Warning: Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex™ Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 ˝ to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working down stream.
