High Expansion Pipe Plugs









      (Click picture for larger view)

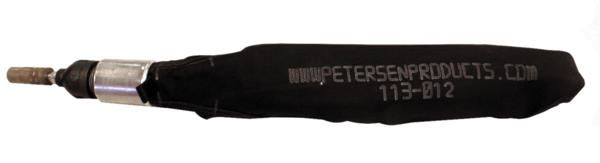

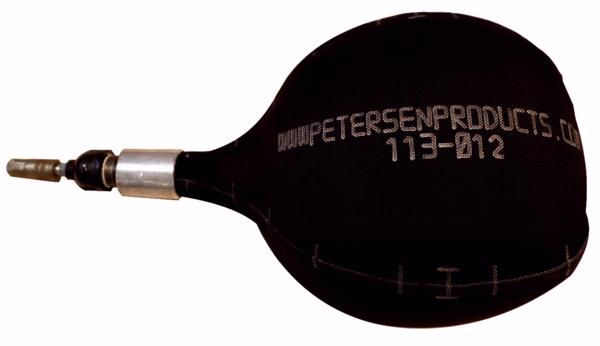

 High Expansion Pipe Plugs 1" and Larger

• Industrial Ballistic Nylon Outer Ply
• Smallest deflated size to install through tiny openings
• Higher pressure and more robust than typical "Gas Plugs"
  Pipe Diameter Max  Inflation Pipe Max.  Tap Hole Length to Neck Length Shipping
Product Code Max  mm Min mm psig bar Head    m Size mm Neck  mm mm Weight  Kg
108 113-050 51 25.4 30 2.1 11 25.4 89 25 1
108 113-075 76 25.4 30 2.1 11 25.4 114 51 1
108 113-100 102 32.0 30 2.1 11 32 191 51 1
108 113-125 127 32.0 30 2.1 11 32 152 51 1
108 113-150 152 41.9 30 2.1 11 41.9 222 51 1
108 113-200 203 50.8 30 2.1 11 50.8 229 76 1.4
108 113-250 254 50.8 30 2.1 11 50.8 305 76 1.4
108 113-300 305 63.5 25 1.7 9 63.5 381 76 1.4
108 113-375 381 63.5 25 1.7 9 63.5 495 76 2.2
108 113-400 406 76.2 25 1.7 9 76.2 533 76 2.8
108 113-450 457 76.2 22 1.5 8 76.2 610 76 3
108 113-500 508 102 20 1.4 7 101.6 686 76 3
108 113-600 610 102 10 0.69 4 101.6 838 76 4.5
108 113-750 762 127 9 0.62 3.1 127 1067 76 5.5
108 113-825 838 127 9 0.62 3.1 127 1181 76 6.4
108 113-850 864 127 9 0.62 3.1 127 1219 76 6.8
108 113-900 914 127 9 0.62 3.1 127 1295 76 9
108 113-1050 1067 152 9 0.62 3.1 152.4 1524 76 12
108 113-1200 1219 152 6.5 0.45 2.3 152.4 1753 76 13
108 113-1350 1372 152 5 0.34 3.5 152.4 1981 76 14
108 113-1500 1524 178 4.5 0.31 1.6 177.8 2210 76 14
108 113-1675 1676 178 3 0.21 1.1 177.8 2438 76 16
108 113-1800 1829 178 2 0.14 0.7 177.8 2667 76 16
108 113-2100 2134 203 1 0.07 0.35 203.2 3124 76 18
108 113-2250 2286 229 1 0.07 0.35 228.6 3353 76 23
