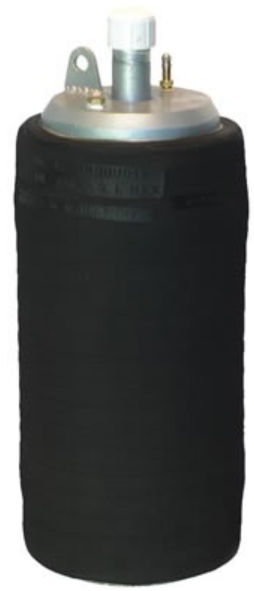

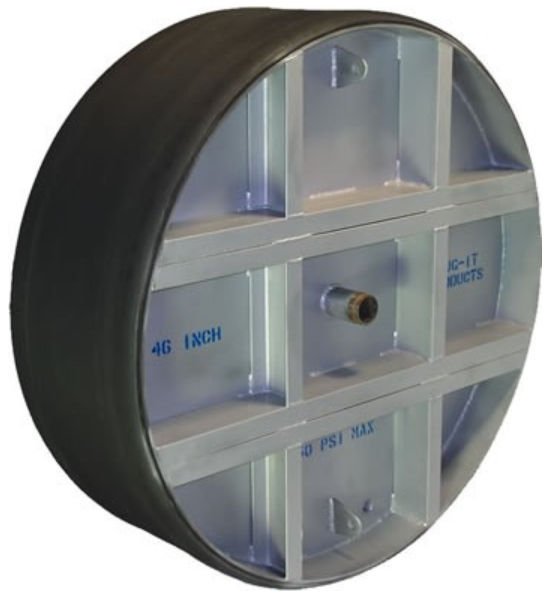

                                   High Pressure Plugs










      (Click picture for larger view)





 150 PSI Test Plugs

Product Code Size Range mm By pass Inflation PSI/Bar Back pressure PSI/Bar Length Width
123-800-4 90-125 25 200/13.8 150/10.3 460 90
123-800-6 150-175 25 200/13.8 150/10.3 460 127
123-800-8 175-225 50 200/13.8 150/10.3 460 165
123-800-10 225-275 50 200/13.8 150/10.3 460 203
123-800-12 275-325 50 200/13.8 150/10.3 460 254
123-800-15 350-400 50 200/13.8 150/10.3 460 330
123-800-18 425-475 50 200/13.8 150/10.3 460 406
123-800-21 500-550 50 200/13.8 150/10.3 460 483
123-800-24 575-625 50 200/13.8 150/10.3 460 559
123-800-27 650-700 50 200/13.8 150/10.3 460 635
123-80030 750-800 50 200/13.8 150/10.3 460 711
123-800-33 800-850 50 200/13.8 150/10.3 460 787
123-800-36 900-950 50 200/13.8 150/10.3 460 864
123-800-39 950-1000 50 200/13.8 150/10.3 460 940




 200 PSI Test Plugs

Product Code Size Range mm By pass Inflation PSI/Bar Back pressure PSI/Bar Length Width
123-825-4 90-125 25 250/17.25 200/13.8 460 90
123-825-6 150-175 25 250/17.25 200/13.8 460 127
123-825-8 175-225 50 250/17.25 200/13.8 460 165
123-825-10 225-275 50 250/17.25 200/13.8 460 203
123-825-12 275-325 50 250/17.25 200/13.8 460 254
123-825-15 350-400 50 250/17.25 200/13.8 460 330
123-825-18 425-475 50 250/17.25 200/13.8 460 406
123-825-21 500-550 50 250/17.25 200/13.8 460 483
123-825-24 575-625 50 250/17.25 200/13.8 460 559
123-825-27 650-700 50 250/17.25 200/13.8 460 635
123-825-30 750-800 50 250/17.25 200/13.8 460 711
123-825-33 800-850 50 250/17.25 200/13.8 460 787
123-825-36 900-950 50 250/17.25 200/13.8 460 864
123-825-39 950-1000 50 250/17.25 200/13.8 460 940




 250 PSI Test Plugs

Product Code Size Range mm By pass Inflation PSI/Bar Back pressure PSI/Bar Length Width
123-850-4 90-125 25 300/20.7 250/17.2 460 90
123-850-6 150-175 25 300/20.7 250/17.2 460 127
123-850-8 175-225 50 300/20.7 250/17.2 460 165
123-850-10 225-275 50 300/20.7 250/17.2 460 203
123-850-12 275-325 50 300/20.7 250/17.2 460 254
123-850-15 350-400 50 300/20.7 250/17.2 460 330
123-850-18 425-475 50 300/20.7 250/17.2 460 406
123-850-21 500-550 50 300/20.7 250/17.2 460 483
123-850-24 575-625 50 300/20.7 250/17.2 460 559
123-850-27 650-700 50 300/20.7 250/17.2 460 635
123-850-30 750-800 50 300/20.7 250/17.2 460 711
123-850-33 800-850 50 300/20.7 250/17.2 460 787
123-850-36 900-950 50 300/20.7 250/17.2 460 864
123-850-39 950-1000 50 300/20.7 250/17.2 460 940
