             Multi-Size Joint Tester / Grout Packer










      (Click picture for larger view)

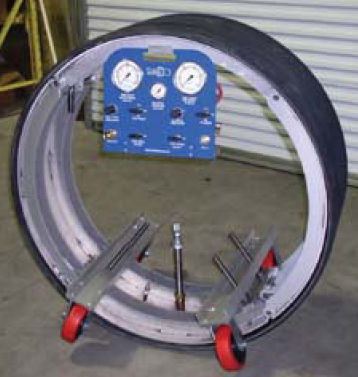

 25 PSI Multi Size Joint Tester


Product Code Size Range mm Inflation PSI/Bar Test Pressure Diameter Width
123-910-2430 600-800 75/5.2 25/1.7 535 610
123-910-3036 750-950 75/5.2 25/1.7 686 610
123-910-3642 900-1100 75/5.2 25/1.7 838 610
123-910-4248 1050-1250 75/5.2 25/1.7 991 610
123-910-4854 1200-1400 75/5.2 25/1.7 1143 610
123-910-5460 1350-1550 75/5.2 25/1.7 1295 610
123-910-6066 1500-1700 75/5.2 25/1.7 1448 610
123-910-6672 1650-1850 75/5.2 25/1.7 1600 610
123-910-7278 1800-2000 75/5.2 25/1.7 1753 610
123-910-7884 1950-2150 75/5.2 25/1.7 2057 610
123-910-8490 2100-2300 75/5.2 25/1.7 2210 610
123-910-9096 2250-2450 75/5.2 25/1.7 2362 610
123-910-96102 2400-2600 75/5.2 25/1.7 2515 610







      (Click picture for larger view)

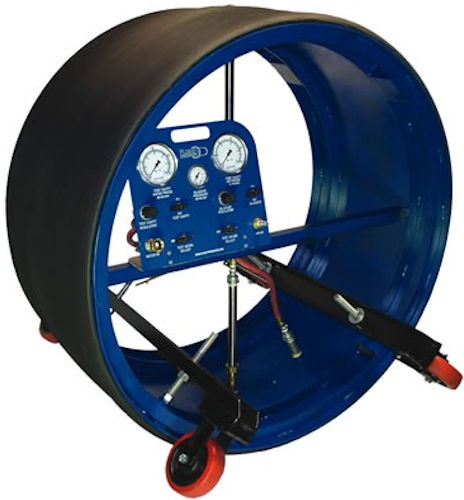

 100 PSI Multi Size Joint Tester


Product Code Size Range mm Inflation PSI/Bar Test Pressure Diameter Width
123-900-2430 600-800 150/10.30 100/6.9 533 610
123-900-3036 750-950 150/10.30 100/6.9 686 610
123-900-3642 900-1100 150/10.30 100/6.9 838 610
123-900-4248 1050-1250 150/10.30 100/6.9 991 610
123-900-4854 1200-1400 150/10.30 100/6.9 1143 610
123-900-5460 1350-1550 150/10.30 100/6.9 1295 610
123-900-6066 1500-1700 150/10.30 100/6.9 1448 610
123-900-6672 1650-1850 150/10.30 100/6.9 1600 610
123-900-7278 1800-2000 150/10.30 100/6.9 1753 610
123-900-7884 1950-2150 150/10.30 100/6.9 2057 610
123-900-8490 2100-2300 150/10.30 100/6.9 2210 610
123-900-9096 2250-2450 150/10.30 100/6.9 2362 610
123-900-96102 2400-2600 150/10.30 100/6.9 2515 610

Available in Aluminium or Steel






      (Click picture for larger view)

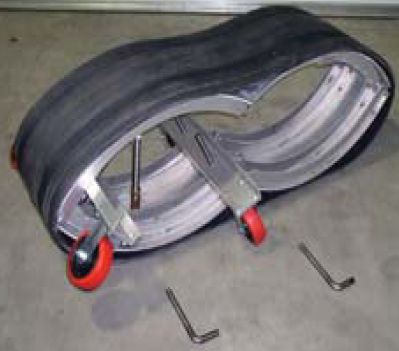

               25 PSI Collapsable Multi Size Joint Tester


Product Code Size Range mm Inflation PSI/Bar Test Pressure Diameter Width
123-925-2430 600-800 50/3.5 25/1.7 460 525
123-925-3036 750-950 50/3.5 25/1.7 460 686
123-925-3642 900-1100 50/3.5 25/1.7 460 838
123-925-4248 1050-1250 50/3.5 25/1.7 460 991
123-925-4854 1200-1400 50/3.5 25/1.7 460 1143
123-925-5460 1350-1550 50/3.5 25/1.7 460 1295
