  Municipal Style Kevlar® Reinforced Pillow Shape Sealing Plugs

With & Without By-Pass










      (Click picture for larger view)

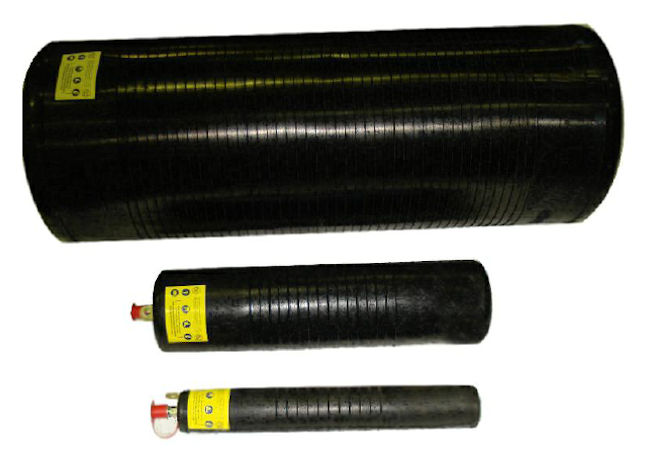

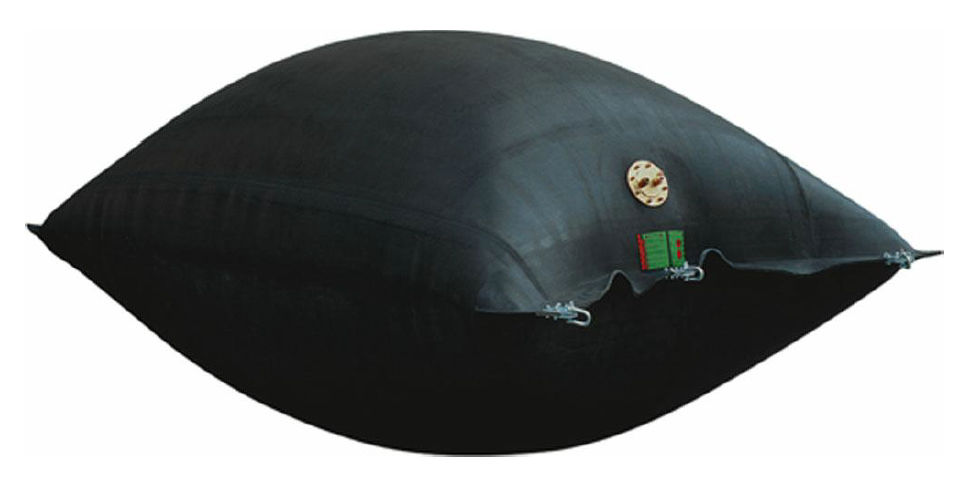

Municipal Style Kevlar® Reinforced Pillow Shape Sealing Plugs
With & Without By-Pass           Sizes: 600mm to 2743mm

Pillow Plugs are ideal for large pipes when access is limited. When deflated they may be folded up and inserted through a standard manhole and then inflated. Standard sizes range from 2' up to 9' diameter, with or without by-pass for testing or flow through. A Pillow Plug can generally be inserted through an opening 1/3 the diameter of the pipe.

Made of Kevlar® reinforced *NR-SBR rubber compound.
* NR = Isoprene rubber, natural. SBR = Styrene-butadiene rubber.
Equipped with standard 1/4" quick connect coupler.


Multi-Size Pneumatic Pillow Shape Sealing Plugs Without By-Pass

  Pipe Diameter   Max. Inflation **Pipeline Deflated Deflated Shipping
Product Code Max mm Min mm   psig bar Max. Head  m Width  mm Length  mm Weight Kg
108 135-040 1000 600   14.5 1 6.9 924 2133 18
108 135-048 1200 800   13 0.9 5.9 1249 2540 29
108 135-064 1600 1200   11.5 0.8 4.9 1859 3251 50
108 135-080 2000 1600   8.6 0.6 4 2489 4064 85
108 135-088 2235 1930   7 0.5 3 2921 4801 100
1085 135-096 2540 2438   7.2 0.5 2.5 3758 5613 203
108 135-108 2743 2642   5.8 0.4 1.9 4064 6604 288


Multi-Size Pneumatic Pillow Shape Sealing Plugs With By-Pass
  Pipe Diameter By-Pass Max. Inflation **Pipeline Deflated Deflated Shipping
Product Code Max mm Min mm Size  mm psig bar Max. Head  m Width  mm Length  mm Weight Kg
108 135-040-8 1000 600 50 14.5 1 6.9 934 1900 51
108 135-048-8 1200 800 50 13 0.9 5.9 1270 2300 75
108 135-064-8 1600 1200 50 11.5 0.8 4.9 1899 2850 125
108 135-080-8 2000 1600 50 8.6 0.6 4 2540 3700 202
108 135-088-8 2235 1930 50 7 0.5 3 2921 4801 425
108 135-096-8 2504 2438 50 7.2 0.5 3 3734 5690 515
108 135-108-8 2743 2662 50 3 0.2 2 4064 6604 662





**Inflatable Plug Warning: Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex™ Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 ˝ to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working down stream. td>
