                     Steam Plugs









(Click picture for larger view)

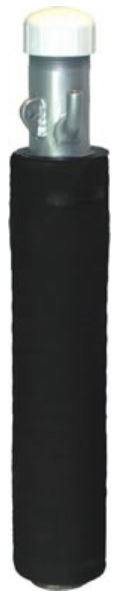

 Multisize Steam Plugs

Product Code Size Range mm By pass Inflation PSI/Bar Back pressure PSI/Bar Length Diameter Weight
123-450-0100-0200-50 100-200 50 40/2.8 14.5/1 559 98 3
123-450-0150-0250-50 150-250 50 40/2.8 14.5/1-10/0.7 560 140 3
123-450-0200-0300-50 200-300 50 40/2.8 14.5/1 560 165 8
123-450-0250-0400-50 250-400 50 40/2.8 14.5/1 600 216 13
123-450-0275-0400-50 275-400 50 40/2.8 14.5/1 560 255 15.5
123-450-0350-0550-50 350-550 50 40/2.8 14.8/1-10/0.7 610 345 21
123-450-0425-0625-50 425-625 50 40/2.8 14.5/1-10/0.7 620 405 27
