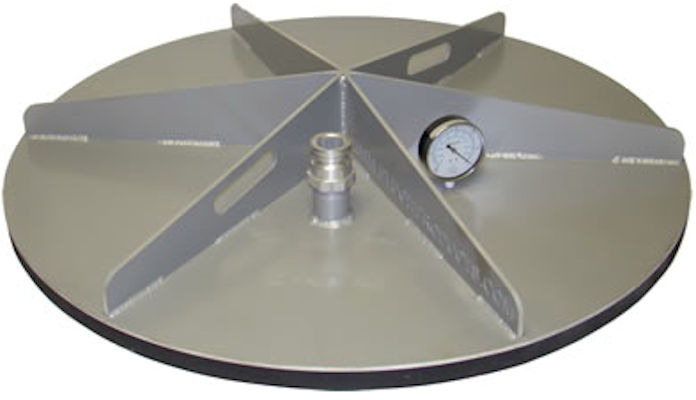

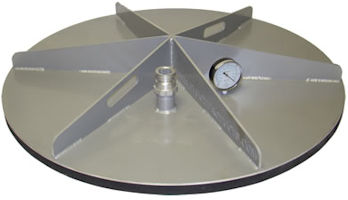

Vacuum Test Plate


12" Vacuum Test Plate

  U.S. Standard Metric
Diameter 14.0" 356 mm
Weight 10.0 lbs 4.5 kgs
Vacuum Port 1.5" 38 mm

24" Vacuum Test Plate

  U.S. Standard Metric
Diameter 26.0" 660 mm
Weight 25.0 lbs 11.3 kgs
Vacuum Port 1.5" 38 mm

36" Vacuum Test Plate

  U.S. Standard Metric
Diameter 38.0" 965 mm
Weight 42.0 lbs 19.1 kgs
Vacuum Port 1.5" 38 mm

42" Vacuum Test Plate

  U.S. Standard Metric
Diameter 44.0" 1118 mm
Weight 55.0 lbs 24.9 kgs
Vacuum Port 1.5" 38 mm







(Click picture above for larger view)

Vacuum Test Plate w/ Window


24" Vacuum Test Plate w/ Window

  U.S. Standard Metric
Diameter 26.0" 660 mm
Weight 25.0 lbs 11.3 kgs
Vacuum Port 1.5" 38 mm
Window Size 6.0" 152 mm



36" Vacuum Test Plate w/ Window

  U.S. Standard Metric
Diameter 38.0" 965 mm
Weight 42.0 lbs 19.1 kgs
Vacuum Port 1.5" 38 mm
Window Size 6.0" 152 mm



42" Vacuum Test Plate w/ Window

  U.S. Standard Metric
Diameter 44.0" 1118 mm
Weight 55.0 lbs 24.9 kgs
Vacuum Port 1.5" 38 mm
Window Size 6.0" 152 mm
